Superior Outback Adventurer Australia Wide Legal 3″ or 4″ Lift, 33″-35″ Tyres, 3.9T GVM Upgrade Kit

TOYOTA LANDCRUISER 200 Series –

Landcruiser 200 Series Outback Adventurer Release Video:

NOW AVAILABLE for Pre Registration in ALL States & Post Registration in MOST States of Australia.

Federal and State Compliance

The solution for owners/managers of Toyota Landcruiser 200 Series vehicles, who have a need to carry loads to a GVM of 3900kg (up from 3350kg standard GVM), while at the same time meeting the practical and documentary compliance requirements of Work Safety, Police Licensing, Insurance, Lessor’s and Fleet Managers.

The Superior Engineering 200 series OUTBACK ADVENTURER  Upgrade Kit can be fitted to vehicles with or without Toyota’s ESC System and KDSS

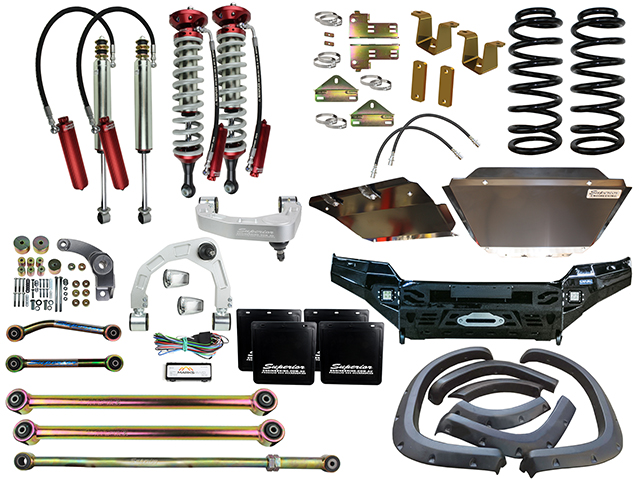

WHAT DO I GET in the Superior Engineering OUTBACK ADVENTURER kit?

2nd stage manufacture compliant – Pre Rego (All States) / Post Rego (State Dependant)

Legal in all states of Australia

1 x Compliance plate with revised GVM of up to 3900kg

1 x Tyre Placard (Decal) with revised axle capacities

1 x Vehicle Owner’s Manual

1 x Fitting Instruction Manual

IS THERE ANY EXTENDED WHEEL BASE OPTIONS FOR THE OUTBACK ADVENTURER KIT?

Currently no we do not have an extended wheel base option.

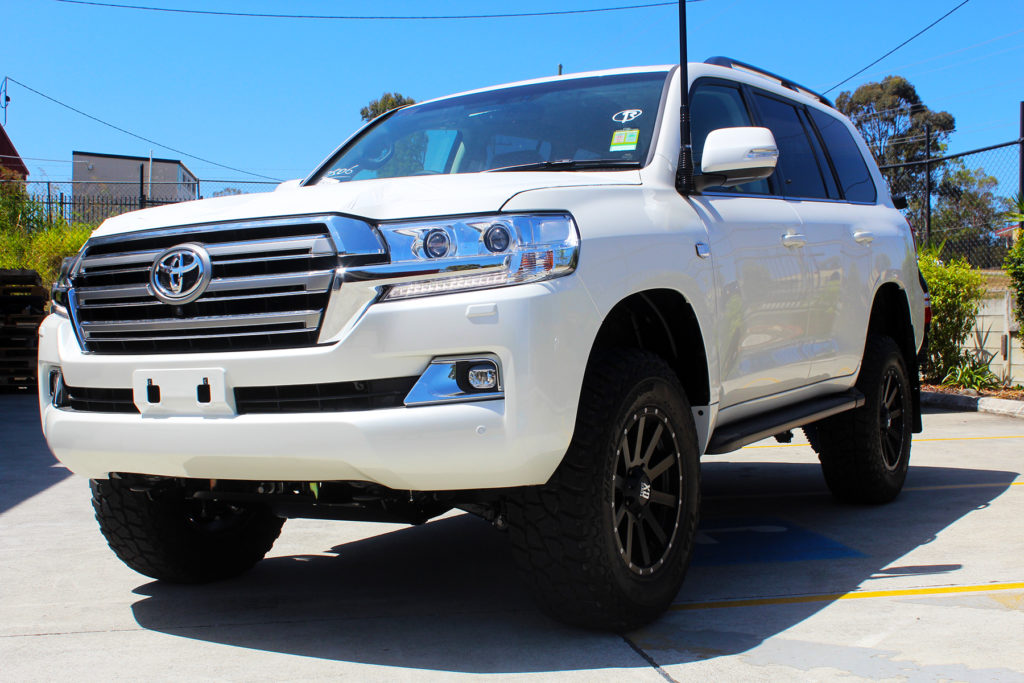

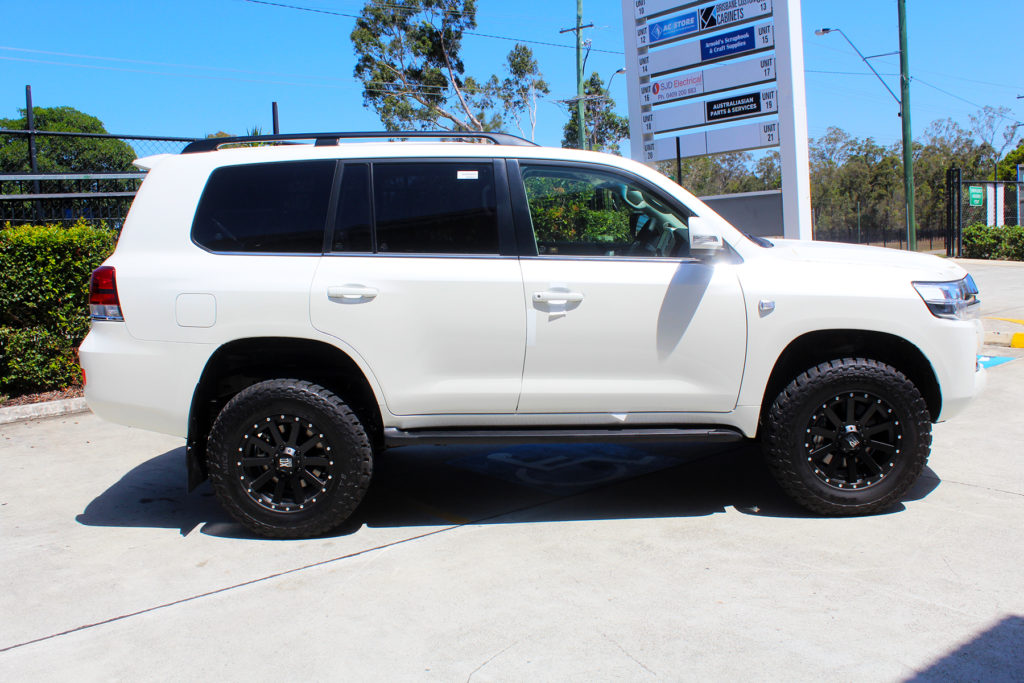

HOW MUCH LIFT DOES THE VEHICLE ACTUALLY GET?

The package will give owners a true 3″ or 4” of vehicle lift. This lift is generally done at the vehicles Tare weight and as such will be at 3″ or 4” during the most common everyday loaded condition. Spring ratings are done to ensure they will carry the additional capacity that the GVM will provide. A shock absorber package is carefully matched to provide the Maximum amount of wheel travel for that given lift height. Rigorous testing and tuning has been done to ensure amazing handling both on and offroad in all conditions.

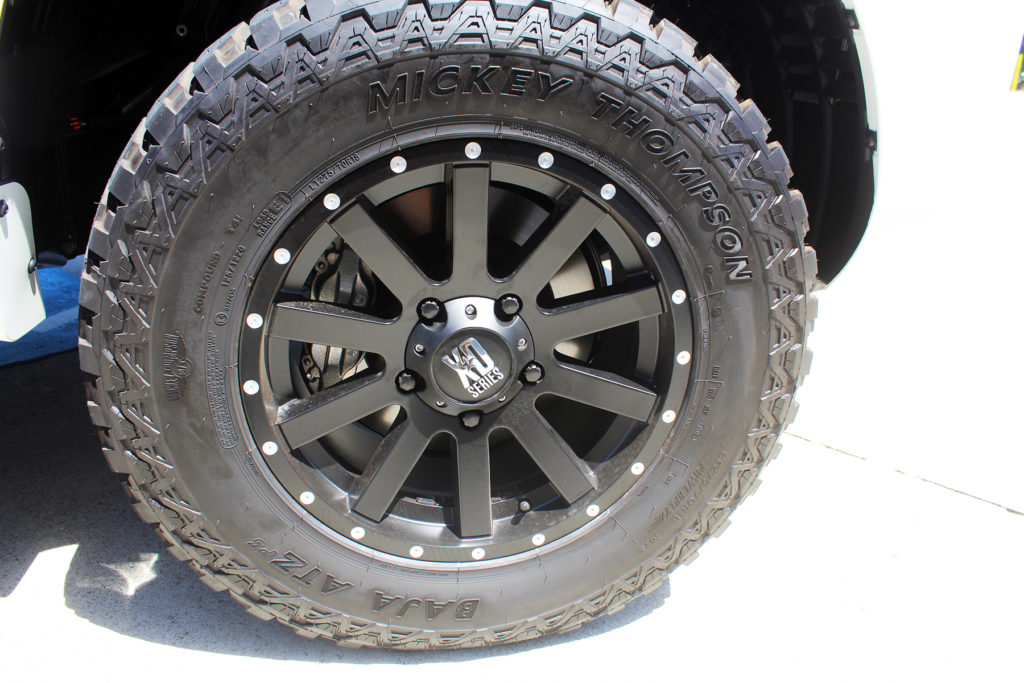

WHAT TYRE AND RIM SIZES CAN BE RUN WITH THIS KIT?

Front Axle 285/65R18 18 X 8J
Rear Axle 285/65R18 18 X 8J
Front Axle 285/70R17 17X8J, 17X9J
Rear Axle 285/70R17 17X8J, 17X9J
Front Axle 295/70R17 17X8J, 17X9J
Rear Axle 295/70R17 17X8J, 17X9J
Front Axle 305/65R18 18X8J, 18X9.5JJ
Rear Axle 305/65R18 18X8J, 18X9.5JJ
Front Axle 285/65R20 20X8J, 20X9J
Rear Axle 285/65R20 20X8J, 20X9J
Front Axle 285/75R18 18X8J, 18X9J
Rear Axle 285/75R18 18X8J, 18X9J
Front Axle 35X12.5R17 17X9J
Rear Axle 35X12.5R17 17X9J
Front Axle 35X12.5R18 18X8J, 18X9.5JJ
Rear Axle 35X12.5R18 18X8J, 18X9.5JJ
Front Axle 35X12.5R20 20X8J, 20X9.5JJ
Rear Axle 35X12.5R20 20X8J, 20X9.5JJ
Front Axle 315/70R17 17X8J, 17X9.5JJ
Rear Axle 315/70R17 17X8J, 17X9.5JJ
Front Axle 305/70R18 18X8J, 18X9.5JJ
Rear Axle 305/70R18 18X8J, 18X9.5JJ
View Coil Conversion Listings

WHY DO 200 SERIES LANDCRUISER VEHICLES REQUIRE G.V.M (Gross Vehicle Mass) UPGRADES?

Real-world testing has shown that a typically fitted-out 200 Series with bull bar, winch, extra fuel tank, rear tray, canopy and a rear bar with spare wheel carrier can be easily approaching the manufacturers Original Equipment GVM of 3350kg. That’s without any passengers or any luggage in the vehicle!

SOLUTION:

The Superior Engineering – OUTBACK ADVENTURER kit is specifically designed to suit any vehicle owner/operator who has a need to carry loads approaching 1200 kg. All vehicles such as Loaded Tourers ,Farmers and Tradesmen, Government Departments, Mining Companies, large and small businesses can benefit from the added payload capacity. With the ever increasing possibility of litigation under common law if a vehicle is operated beyond its legal Load Limits an approved GVM increase in an almost essential upgrade.

USING SUPERIOR ENGINEERING OUTBACK ADVENTURER – UPGRADE KIT, (FEDERALLY APPROVED) HELPS AVOID THESE PROBLEMS.

APPROVAL: 50311 – 200 LANDCRUISER – 5, 7, 8 Seat (Model Dependant)

The OUTBACK ADVENTURER kit is designed to suit the following vehicles;

Maximum seat capacity @ Raised GVM

GVM MODEL VARIANT SEATING OPTIONS
3900 VDJ200R – GNTAZQ 5, 7 or 8
3900 VDJ200R – GNTEZQ 5 or 7

Should the Seating capacity need to be decreased, the center rear 3rd row seat belts may be required to be removed.

WHAT AMOUNT OF INCREASE SHOULD YOU EXPECT?

Officially sanctioned GVM Kit provides:

GVM to 3900kg

GVM increase of 550kg

WHAT TOWING CAPACITY AM I ALLOWED?

A Full 3500KG Braked tow capacity

750kg un-braked towing

Is the GCM Upgraded?

GCM (Gross Combined Mass) is used by vehicle manufacturers in sales brochures noting the combination of GVM and BTC. Please Note: The GCM (Gross Combined Mass) doesn’t form part of a Superior Engineering Approval for Second Stage Manufacture. There is currently no federal government approved test to upgrade the GCM.

It is basically governed by the new GVM of the vehicle and the maximum braked towing capacity. The original equipment maximum braked towing capacity for example on the 200 SERIES LANDCRUISER  is 3500kg. This doesn’t increase nor decrease when a Superior Engineering Outback Adventurer Kit with GVM Upgrade is fitted, it remains at 3500kg.

The new vehicle GVM becomes 3900kg (200 SERIES LANDCRUISER) as noted in the Superior Engineering SSM (Second Stage of Manufacture Upgrade). An important factor that must be considered is the ball weight of the towed apparatus. When towing – whatever the measured ball weight is, it must be subtracted from the vehicles GVM.

GCM is not noted or listed as part of our Approval within this vehicle Category (LC200 NB1).

Current Federal laws determine that GCM is to remain unchanged from the Original Manufacturers specifications. Some states within Australia may allow a GCM upgrade Post Registration under state laws.

WHEN SHOULD AN OUTBACK ADVENTURER UPGRADE KIT BE FITTED?

FEDERAL COMPLIANCE: New vehicles must be fitted prior to registration. They are simply then registered with a revised GVM, increased Lift Height and Larger Tire size range, as per the new compliance plate.

Already registered vehicles in NSW, Victoria, ACT, SA & Northern Territory can be fitted with this Outback Adventurer Kit under this Federal Approval.
(QLD & WA must be before first registration.)

View Coil Conversion Listings

STATE COMPLIANCE: OUTBACK ADVENTURER , Lift, Tire and GVM Upgrades. If fitted to a post  registered vehicle, the kit will need to be installed by an Approved Superior Production Facility and inspected by a Superior Engineering nominated State Engineering Signatory. Extra Cost for Inspection and documents will be incurred.
